Nordic nRF52833 module

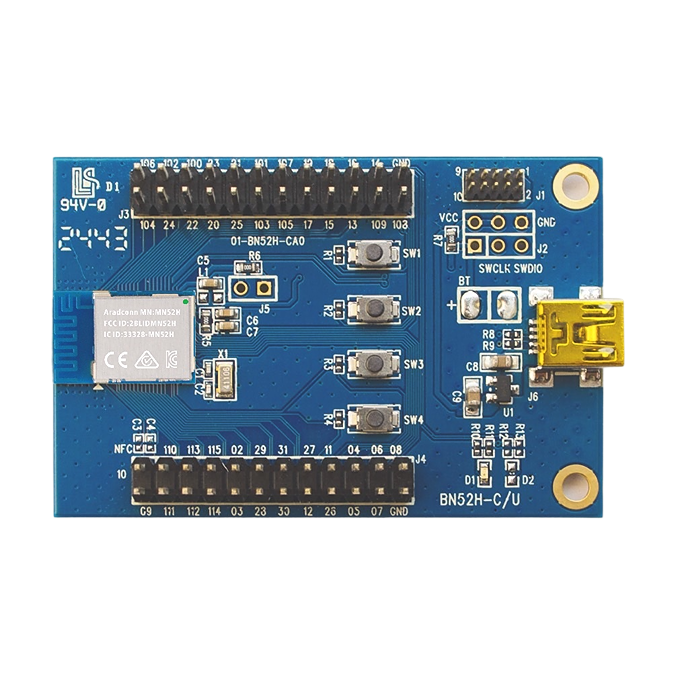

Aradconn Bluetooth Module MN52H-C33/P33/U33 Series based on the Nordic Semiconductor nRF52833 chip, this series features a 64 MHz Arm® Cortex M4 processor with FPU, 512KB Flash, and 128KB RAM. It includes +8dBm RF enhancement for extended range, supports a wide operating voltage range of 1.7V–5.5V, and provides 42 GPIOs. Integrated functionalities comprise an NFC-A tag and Full-Speed USB (12Mbps).

• Supported Protocols & Technologies:

  - Bluetooth 5.4 PAwR (Periodic Advertising with Responses)

  - Apple Find My

  - Google Find My

  -  2.4 GHz proprietary protocols

  -  NFC / ANT+ / Bluetooth Mesh / Zigbee/ Thread / USB 2.0

• Communication Range ＞550~650 meters (line of sight)

• Development Support:

  Compatible with Nordic SDK / Zephyr RTOS. For development guidance, refer to the nRF Connect SDK (NCS) Getting Started Guide.
